MUV 69 High-Precision Micro-Chassis Kit H0

This mini-chassis was developed primarily for the MUV 69 (Hekttor) etched kit, but thanks to its compact design, it can be adapted for various other H0 scale utility or special-purpose vehicles.

The MUV 69 chassis proves that even in minimal dimensions, it is possible to achieve top-tier performance without compromise. It is designed to be nearly invisible once installed, while offering a powerful motor and reliable power collection. Building this technical unit yourself allows you to peek into the world of precision micro-mechanics and create a model with running qualities that are rare for machines of this size.

The part count is low, but don't let that fool you—the M0.2 gears require a very steady hand and keen eyesight. It’s a straightforward but miniature project for those comfortable working under a magnifying glass.

Main Features:

  • Extreme Compactness: A design that minimizes space requirements while maintaining high torque.
  • Three-Point Suspension: The rear axle features a rocker (floating) mount, ensuring smooth travel even on uneven trackwork.
  • Reliable Drive: Both axles are driven by a RIC-0816DT coreless motor and equipped with power pickups.

Kit Contents:

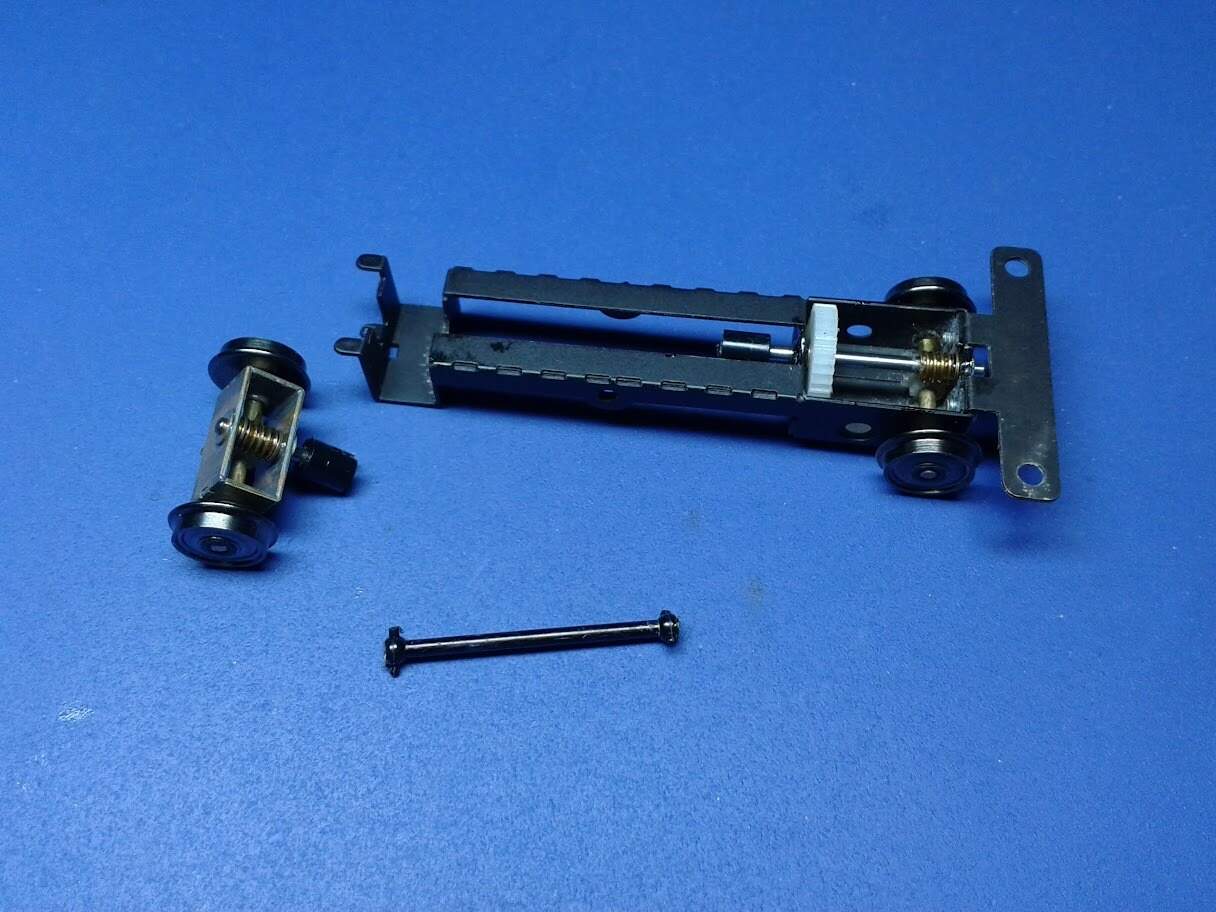

  • Frame and Gearboxes: 0.5 mm brass etchings for maximum rigidity.
  • Precision Gearing: A combination of M0.2 micro-gears (Mikroantriebe/ALS) and M0.3 gears for ultra-smooth operation.
  • Drivetrain: RIC-0816DT coreless motor, ALS cardan shafts, steel shafts, and turned brass bushings.
  • Chassis: 7.8 mm diameter wheelsets, phosphor bronze washers, and steel spring wire for suspension.
  • Power Pickups: Made from 0.1 mm bronze, including insulated plastic screws and washers.

Build Difficulty:
A real engineering challenge. It’s delicate work with no room for error due to the micro-dimensions and M0.2 gears, but with a bit of patience, you'll get it done—and end up with a masterpiece to be proud of.

Instructions: [MUV 69 chassis assembly photo guide]

Kit Price: 1,800 CZK

Orders and inquiries:

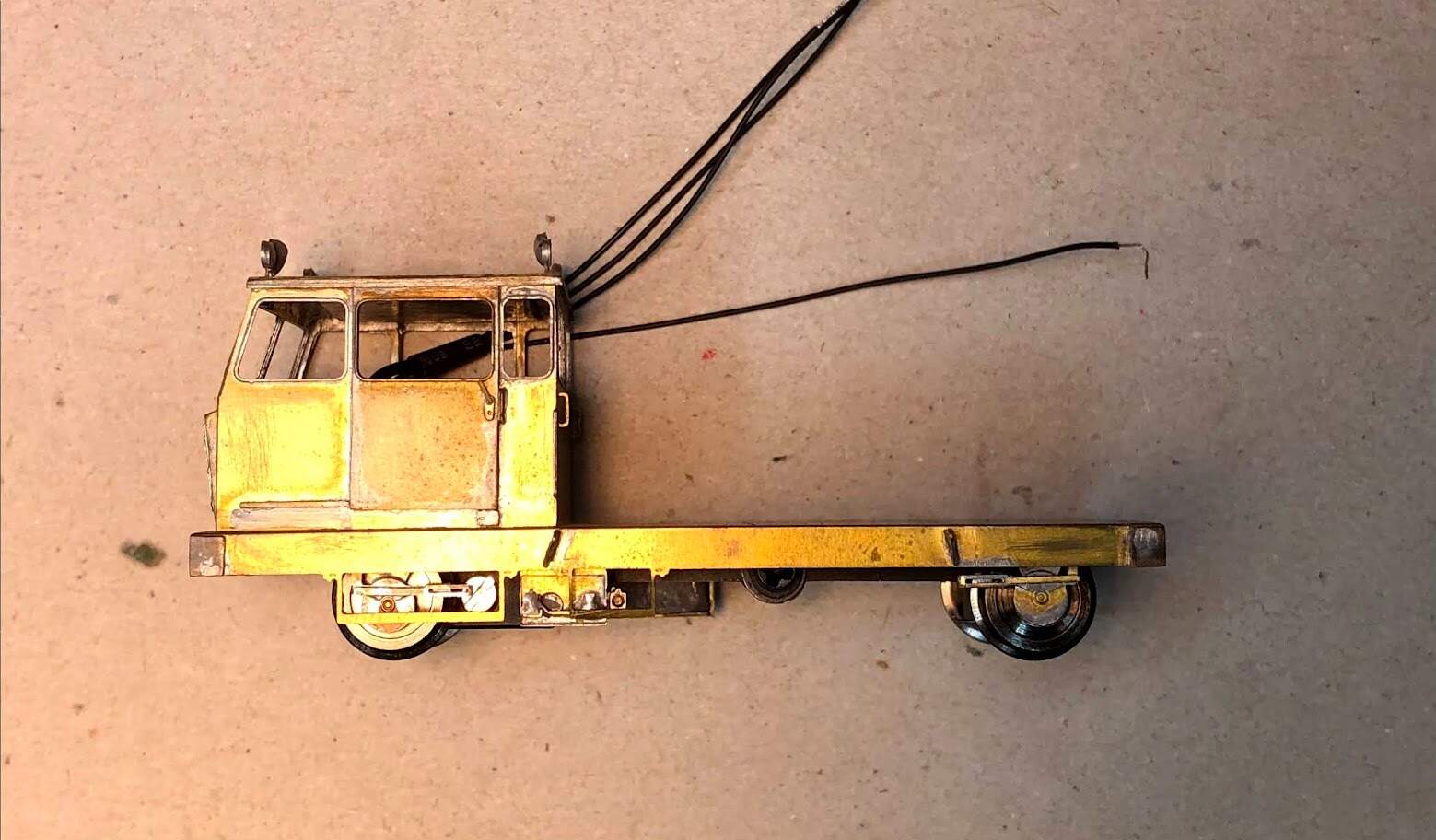

Assembled MUV 69 chassis Fully assembled chassis ready for installation.

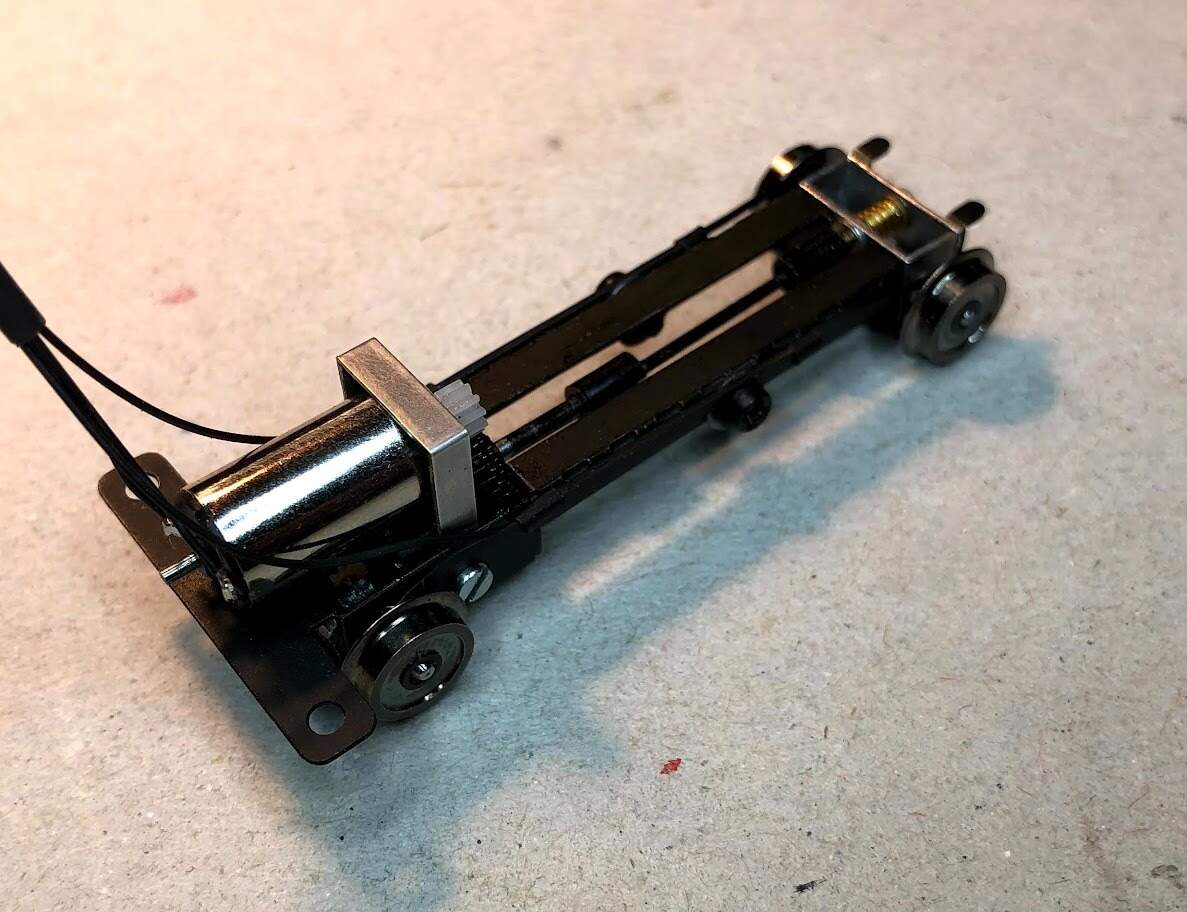

MUV 69 rocker mount Detail of the rear axle gearbox with the rocker suspension mount.

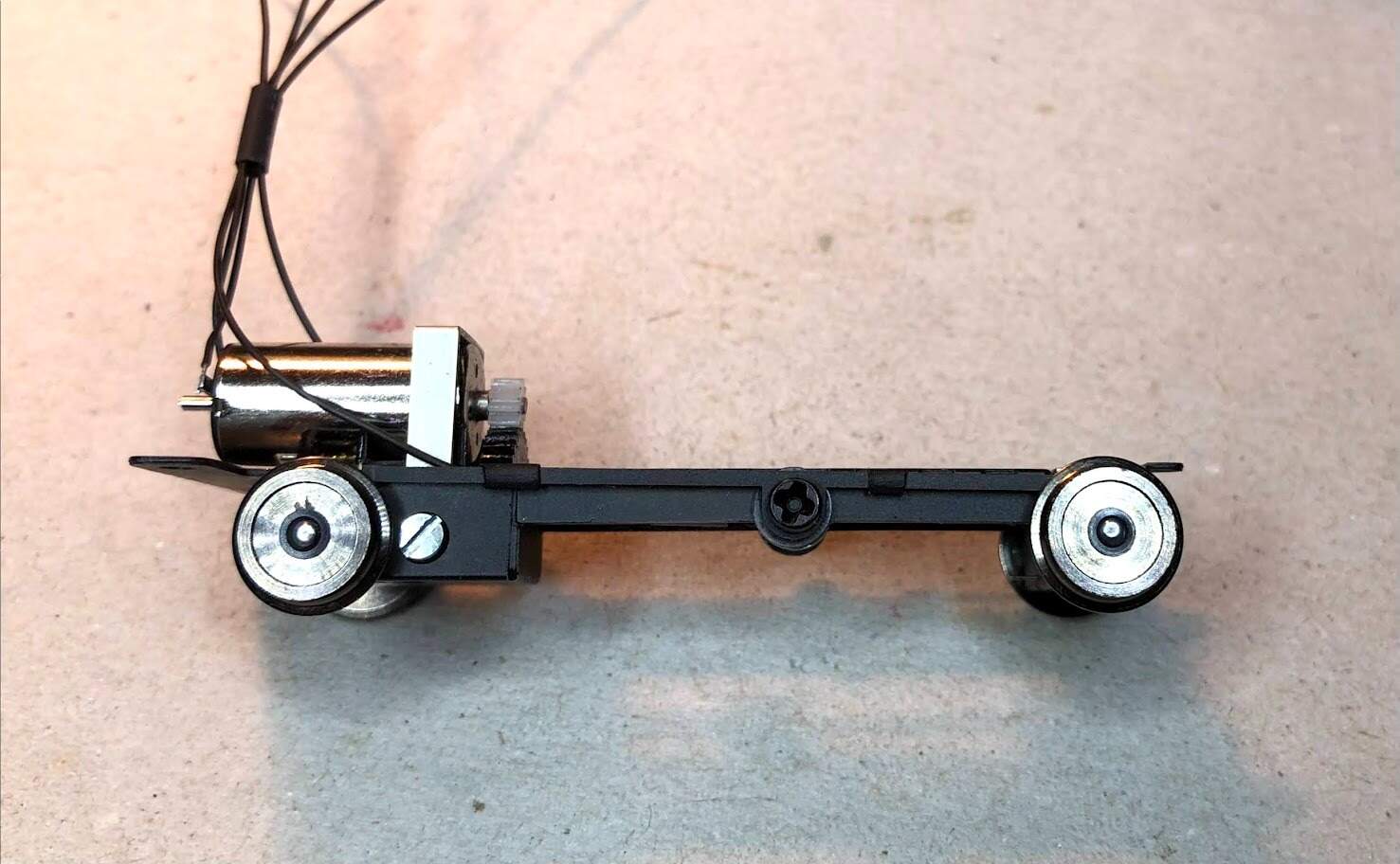

MUV 69 power pickups Bronze power pickups ensuring reliable electrical contact.

Recommended Tools:
Soldering iron and flux (Neutral), precision screwdrivers (M1.4–M2), needle files, tapered reamer (1.5 mm), wheel puller, self-locking tweezers, and M1.6/M2 taps.
